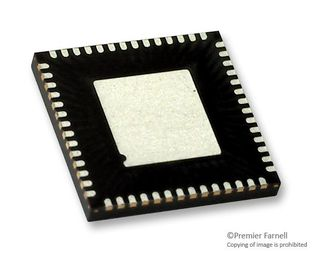

Please contact us for more photos of DA14582-01KA2
| Part Number | DA14582-01KA2 |
|---|---|
| Manufacturer | Dialog Semiconductor |
| Quantity in stock | 232560 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Bluetooth Low Energy 4.2 SoC with integrated wideband analog codec \u2013 31 GPIOs\u00a0in QFN56 and 0.5mm ball pitch package\u00a0\u00a0 |
| Category | RF & Microwave |
| Family | RF Transceiver |
| ROHS Compliant | Yes |
| MSL Level | DA14582-01KA2 |
| Datasheet download |  DA14582-01KA2.pdf |
| Part Number | DA14582-01KA2 |
|---|---|
| Category | Low Power Bluetooth Smart SoC with Audio Codec |
| Package Dimensions | 8 x 8 x 0.6 mm |
| Screening Level | Commercial |
| Type | Low Power Bluetooth Smart SoC with Audio Codec |
| Moisture Sensitivity Level | 3 |
| Operating Temperature | -20 to 60 °C |
| Lead Finish | Gold Over Nickel Palladium |
| Mounting | Surface Mount |
| Rad Hard | No |
| Supplier Package | QFN |
| Pin Count | 56 |
| Package | 56QFN |
| Replacement Part Number | PART-DA14582-01KA2 |
| Weight | Contact us |
| Country of Origin | - |
