Part Number | 74LVCHR32245AZKER |
---|---|
Manufacturer | Texas Instruments |
Quantity in stock | 183360 Pieces |
Market Price | - |
Our Better Price | Send by email: [email protected] |
Delivery Time | 1 day (can ship today) |
Description | Bus XCVR Quad 32-CH 3-ST 96-Pin BGA MICROSTAR T R |
Category | Logic & Timing IC |
Family | Logic ICs |
ROHS Compliant | Yes |
MSL Level | 74LVCHR32245AZKER |
Datasheet download | ![]() |
Part Number | 74LVCHR32245AZKER |
---|---|
Fabrication Technology | CMOS |
Bus Hold | Yes |
Minimum Operating Supply Voltage | 1.65 V |
Number of Output Enables per Element | 1 Low |
Output Level | LVCMOS |
Pin Count | 96 |
Tolerant I/Os | 5 V |
Propagation Delay Test Condition | 50 pF |
Typical Operating Supply Voltage | 1.8|2.5|3.3 V |
Rad Hard | No |
Operating Temperature | -40 to 85 °C |
Input Level | LVTTL|TTL |
Max Processing Temp | 260 |
Output Type | 3-State |
Logic Family | LVC |
Lead Finish | Tin/Silver/Copper |
Number of Elements per Chip | 4 |
Number of Selection Inputs per Element | 0 |
Maximum Propagation Delay Time @ Maximum CL | [email protected]|[email protected] ns |
Polarity | Non-Inverting |
MSL Level | 3 |
Maximum Low Level Output Current | 12 mA |
Maximum Operating Supply Voltage | 3.6 V |
Maximum High Level Output Current | -12 mA |
Mounting | Surface Mount |
Logic Function | Bus Transceiver |
Maximum Quiescent Current | 40 uA |
Screening Level | Commercial |
Supplier Package | BGA MICROSTAR |
Number of Direction Control Inputs | 1 Low/High |
Product Dimensions | 13.5 x 5.5 x 0.85 mm |
Number of Input Enables per Element | 0 |
Data Flow Direction | Bi-Directional |
Number of Channels per Chip | 32 |
Package | 96BGA MICROSTAR |
Replacement Part Number | PART-74LVCHR32245AZKER |
Weight | Contact us |
Country of Origin | - |
Image | Part Number and Brand | Brief Description and PDF Datasheet |
---|---|---|
Toshiba | Buffer 1-CH 3-State CMOS 5-Pin SON Download PDF datasheet for TC7SZ126FE,LJ(CT.pdf |
|

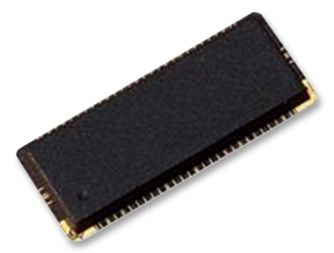

Nexperia | Bus XCVR Single 1-CH 3-ST 96-Pin LF-BGA T R Download PDF datasheet for 74ALVCH32973EC,518.pdf |
|
