TPSD686M020R0200V AVX

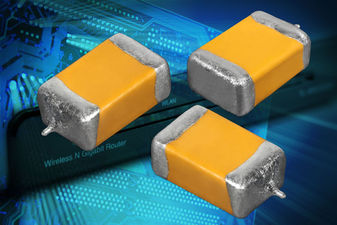

TPSD686M020R0200V Images

Please contact us for more photos of TPSD686M020R0200V

Part Number TPSD686M020R0200V
Manufacturer AVX
Quantity in stock 343460 Pieces
Market Price -
Our Better Price Send by email: [email protected]
Delivery Time 1 day (can ship today)
Description Cap Tant Solid 68uF 20V D CASE 20% (7.3 x 4.3 x 2.9mm) SMD 7343-31 0.2Ohm 125\u00b0C T R
Category Capacitors
Family Capacitor Tantalum Solid SMT
ROHS Compliant Yes
MSL Level TPSD686M020R0200V
Datasheet download TPSD686M020R0200V.pdf
Request Quotation for TPSD686M020R0200V

TPSD686M020R0200V Specifications

Part Number TPSD686M020R0200V
Case Size 2917
Mounting Surface Mount
Rad Hard No
Moisture Sensitivity Level 1
Polarity Polar
Operating Temperature -55 to 125 °C
Package Dimensions 7.3 x 4.3 x 2.9
Capacitance Value 68 uF
Tolerance 20
Package/Case 7343-31,D
Equivalent Series Resistance 0.2
Construction Flat
Dissipation Factor 6
Lead Finish Pure Tin
Case Code D
Pin Count 2
Maximum Processing Temperature 260
Supplier Package 2917
Leakage Current 13.6
Case Style Molded
Voltage(DC) 20 V
Product Depth 4.3
Product Height 2.9
Product Length 7.3
Product Weight 0.29
Replacement Part Number PART-TPSD686M020R0200V
Weight Contact us
Country of Origin -
