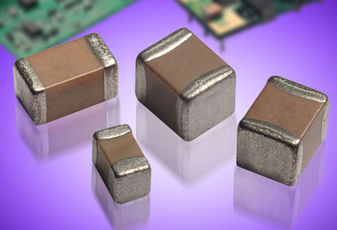

Please contact us for more photos of 1825SC103MAT1A
| Part Number | 1825SC103MAT1A |
|---|---|
| Manufacturer | AVX |
| Quantity in stock | 684560 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Cap Ceramic 0.01uF 1500V X7R 20% SMD 1825 125\u00b0C T R |
| Category | Capacitors |
| Family | Capacitor Ceramic Multilayer |
| ROHS Compliant | Yes |
| MSL Level | 1825SC103MAT1A |
| Datasheet download |  1825SC103MAT1A.pdf |
| Part Number | 1825SC103MAT1A |
|---|---|
| Rad Hard | No |
| Package/Case | 1825 |
| Tolerance | 20 % |
| Operating Temperature | -55 to 125 °C |
| Max Processing Temp | 260 |
| Lead Finish | Matte Tin |
| Voltage(DC) | 1.5 kV |
| Mounting | Surface Mount |
| MSL Level | 1 |
| Case Size | 1825 |
| Dielectric | X7R |
| Capacitance Value | 0.01 uF |
| Case Style | Ceramic Chip |
| Construction | Flat |
| Product Dimensions | 4.5 x 6.4 x 2.54 mm |
| Product Depth | 6.4 mm |
| Product Height | 2.54(Max) mm |
| Product Length | 4.5 mm |
| Replacement Part Number | PART-1825SC103MAT1A |
| Weight | Contact us |
| Country of Origin | - |
