SMB2.5R-1 API Delevan

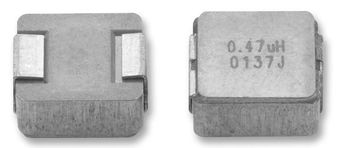

SMB2.5R-1 Images

Please contact us for more photos of SMB2.5R-1

Part Number SMB2.5R-1
Manufacturer API Delevan
Quantity in stock 521900 Pieces
Market Price -
Our Better Price Send by email: [email protected]
Delivery Time 1 day (can ship today)
Description Ind Bead Shielded 385Ohm 100MHz Ferrite 9.5A T R
Category Inductor
Family Inductor Surface Mount
ROHS Compliant Yes
MSL Level SMB2.5R-1
Datasheet download SMB2.5R-1.pdf
Request Quotation for SMB2.5R-1

SMB2.5R-1 Specifications

Part Number SMB2.5R-1
Type Bead
Core Material Ferrite
Max Processing Temp 260
Operating Temperature -40 to 125 °C
Maximum DC Current 9.5 A
Maximum DC Resistance 5 mOhm
Protection Style Shielded
Product Dimensions 11.68 x 7.45 x 5.08 mm
MSL Level 1
Lead Finish Tin
Test Frequency 100 MHz
Package/Case 11.68 X 7.45 X 5.08
Product Depth 7.45 mm
Product Height 5.08 mm
Product Length 11.68 mm
Replacement Part Number PART-SMB2.5R-1
Weight Contact us
Country of Origin -
