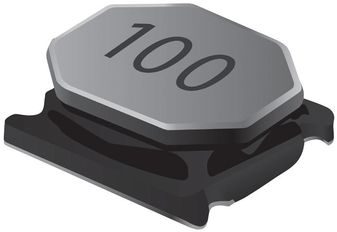

Please contact us for more photos of ASPI-0315FS-4R7M-T2
| Part Number | ASPI-0315FS-4R7M-T2 |
|---|---|
| Manufacturer | Abracon |
| Quantity in stock | 239700 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Ind Power Shielded Wirewound 4.7uH 20% 100KHz Ferrite 1.6A 1212 T R |
| Category | Inductor |
| Family | Inductor Surface Mount |
| ROHS Compliant | Yes |
| MSL Level | ASPI-0315FS-4R7M-T2 |
| Datasheet download |  ASPI-0315FS-4R7M-T2.pdf |
| Part Number | ASPI-0315FS-4R7M-T2 |
|---|---|
| Core Material | Ferrite |
| Supplier Package | 1212 |
| Type | Power |
| Operating Temperature | -25 to 120 °C |
| Protection Style | Shielded |
| Pin Count | 2 |
| Technology | Wirewound |
| Rad Hard | No |
| Product Dimensions | 3 x 3 x 1.5(Max) |
| Lead Finish | Tin |
| Tolerance | 20 % |
| Test Frequency | 100 kHz |
| Package/Case | 1212 |
| Max Processing Temp | 260 |
| Product Depth | 3 mm |
| Product Height | 1.5(Max) mm |
| Product Length | 3 mm |
| Replacement Part Number | PART-ASPI-0315FS-4R7M-T2 |
| Weight | Contact us |
| Country of Origin | - |
