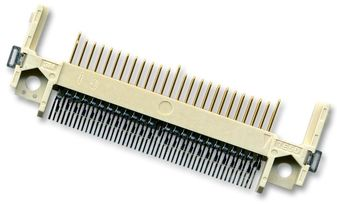

Please contact us for more photos of N7G24-A0B2-RA-10-0HT
| Part Number | N7G24-A0B2-RA-10-0HT |
|---|---|
| Manufacturer | 3M |
| Quantity in stock | 553760 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Conn Compact Flash Card HDR 24 POS Solder RA SMD Tray 1.5A Contact |
| Category | Connectors |
| Family | Connector Memory Card |
| ROHS Compliant | Yes |
| MSL Level | N7G24-A0B2-RA-10-0HT |
| Datasheet download |  N7G24-A0B2-RA-10-0HT.pdf |
| Part Number | N7G24-A0B2-RA-10-0HT |
|---|---|
| Type | Compact Flash Card |
| Contact Plating | Gold Over Nickel |
| Contact Material | Copper Alloy |
| Operating Temperature | -40 to 85 °C |
| Housing Material | Thermoplastic |
| Rad Hard | No |
| Number of Rows | 1 |
| Maximum Current Rating | 1.5/Contact A |
| Product Dimensions | 48.5 x 39.23 x 7.7 mm |
| Termination Method | Solder |
| Mounting | Surface Mount |
| Drawing_URL | |
| Number of Contacts | 24 |
| Body Orientation | Right Angle |
| Gender | HDR |
| Product Depth | 39.23 mm |
| Product Height | 7.7 mm |
| Product Length | 48.5 mm |
| Replacement Part Number | PART-N7G24-A0B2-RA-10-0HT |
| Weight | Contact us |
| Country of Origin | - |
