Please contact us for more photos of N102A0-52E2PC
| Part Number | N102A0-52E2PC |
|---|---|
| Manufacturer | 3M |
| Quantity in stock | 292810 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Conn SCSI RCP 100 POS 2.54mm Solder RA Thru-Hole 100 Terminal 1 Port |
| Category | Connectors |
| Family | Connector SCSI |
| ROHS Compliant | Yes |
| MSL Level | N102A0-52E2PC |
| Datasheet download |  N102A0-52E2PC.pdf |
| Part Number | N102A0-52E2PC |
|---|---|
| Termination Method | Solder |
| Type | SCSI |
| Gender | RCP |
| Mounting | Through Hole |
| Product Dimensions | 84.2 x 16.7 x 9.4 mm |
| Body Orientation | Right Angle |
| Operating Temperature | -55 to 105 °C |
| Number of Ports | 1 |
| Contact Material | Copper Alloy |
| Pitch | 2.54 mm |
| Lead Finish | Gold |
| Contact Plating | Gold Over Nickel |
| Housing Material | Zinc Alloy |
| Max Processing Temp | 260 |
| Product Depth | 16.7 mm |
| Product Height | 9.4 mm |
| Product Length | 84.2 mm |
| Replacement Part Number | PART-N102A0-52E2PC |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|
TE Connectivity | Conn SATA RCP 22 POS 1.27mm Solder ST SMD 22 Terminal 1 Port Tray Download PDF datasheet for 1735284-1.pdf |
|
Amphenol | MINI SAS HD, DUAL WALL, V Download PDF datasheet for G40HB132211HR.pdf |
|
Amphenol-FCI | Conn SATA RCP 15Power 7Signal POS 2.54mm 1.27mm Solder ST Thru-Hole 22 Terminal 1 Port Tray Download PDF datasheet for 10017660-002LF.pdf |
|
Molex | Conn SCSI RCP 42 POS Solder RA SMD 42 Terminal 1 Port Download PDF datasheet for 1719820142.pdf |
|
Molex | Conn SATA PL 7 POS 1.27mm Solder ST SMD 7 Terminal 1 Port Tray Download PDF datasheet for 0678005025.pdf |
|
3M | Conn MINI-SAS RCP 36 POS 0.8mm Solder RA Thru-Hole 36 Terminal 1 Port Tray Download PDF datasheet for 8AB36-2220-LJ.pdf |
|
Molex | Conn SATA RCP 15Power 7Signal POS 1.27mm Solder RA SMD 22 Terminal 1 Port Tray Download PDF datasheet for 47018-2002.pdf |
|
Amphenol-FCI | Conn SAS RCP 29 POS 1.27mm 0.8mm Solder ST SMD 29 Terminal 1 Port T R Download PDF datasheet for 10122272-002C-TRLF.pdf |
|

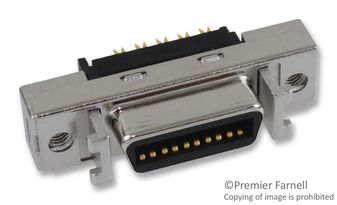

3M | Conn SCSI RCP 20 POS 2.54mm Solder ST Thru-Hole 20 Terminal 1 Port Download PDF datasheet for 10220-6212 PC.pdf |
|
